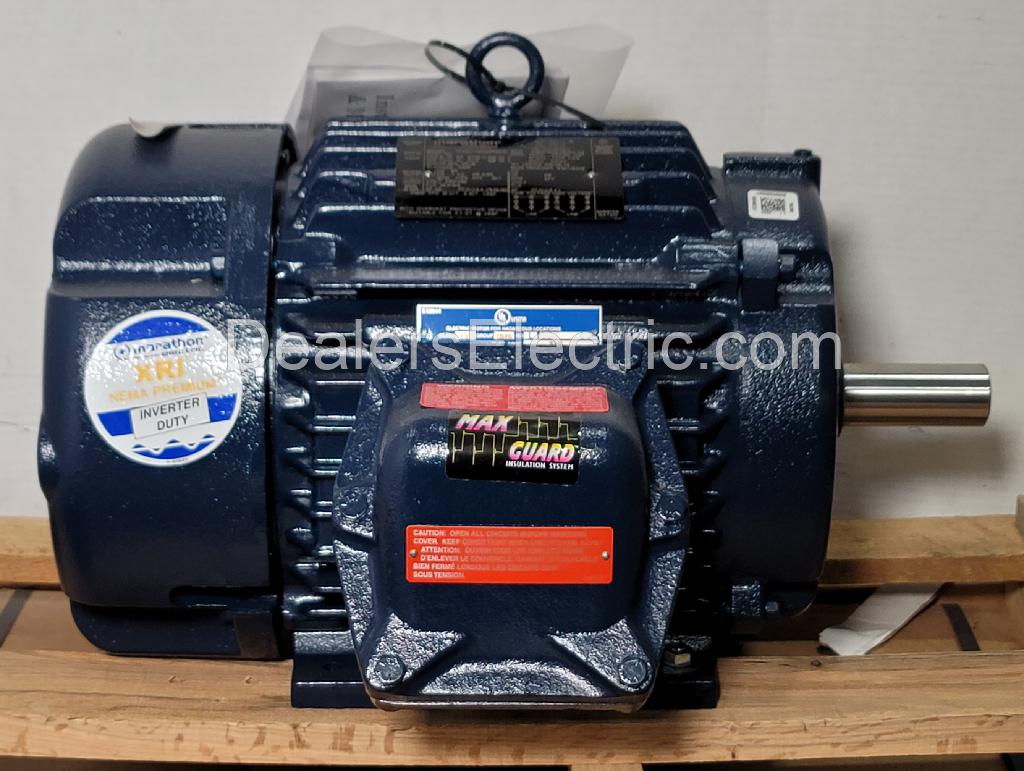

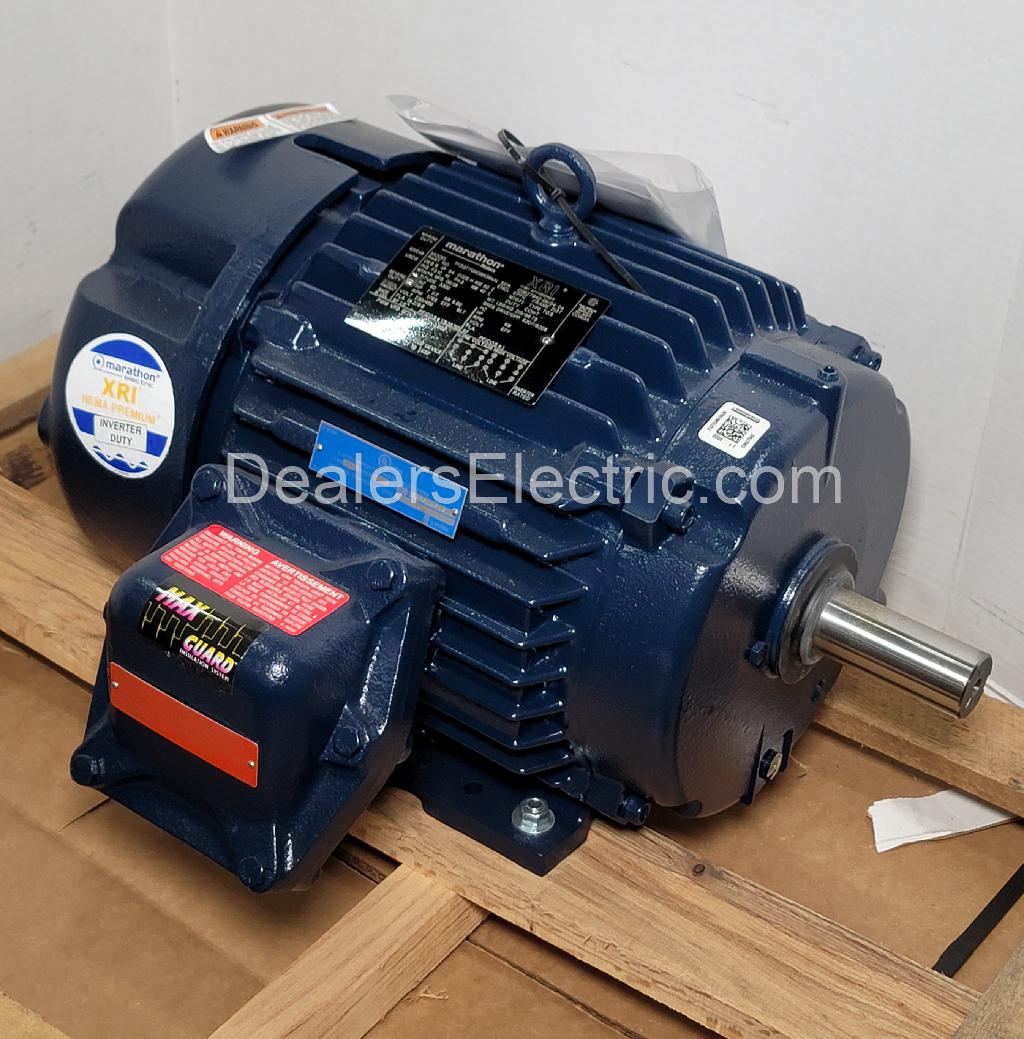

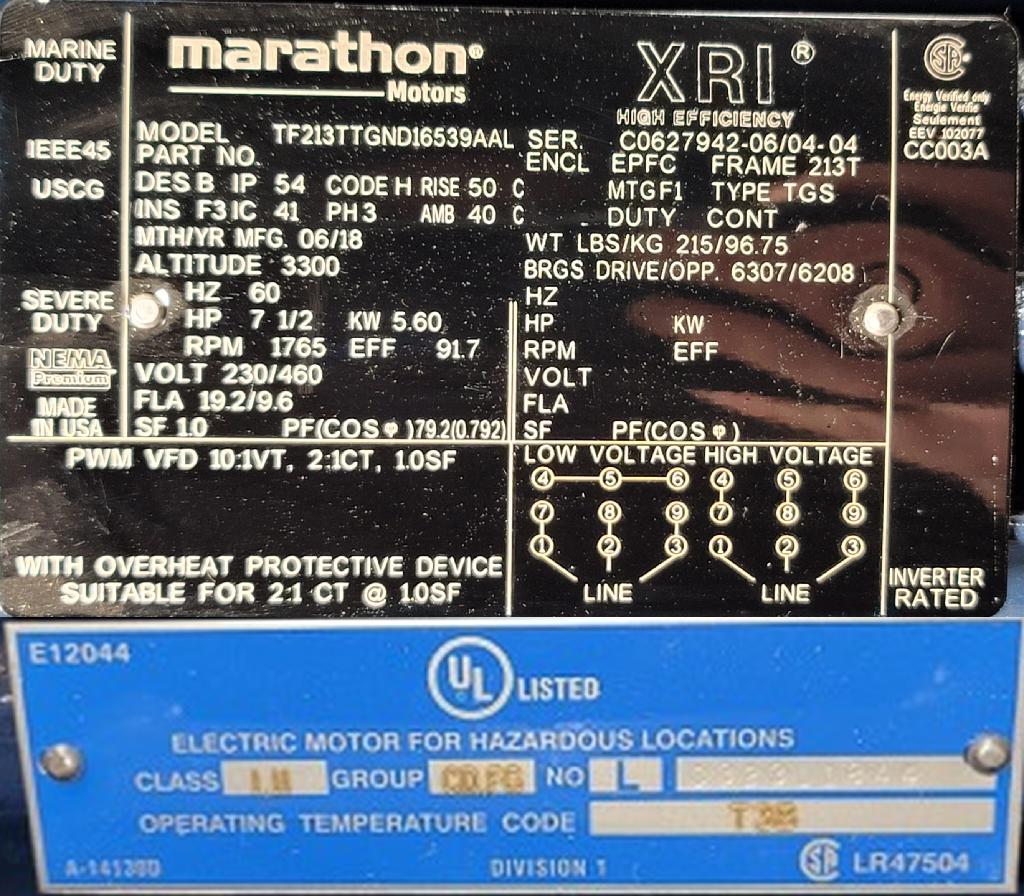

7.5 HP, 1800 RPM, 230/460 Volts, 3 PH, XPFC, 213T, Marathon, 213TTGND16539

Model #: 213TTGND16539
213TTGND16539

Stock:  Backordered
HP : 7.5
RPM : 1800
Enclosure : XPFC
Frame : 213T
Frame Number : 213
Frame Remarks :
mounting : Rigid base
Frame Suffix : T
Volts : 230/460
Phase : 3
Manufacturer : Marathon Electric
Item Condition : New Surplus
Category : Electric Motor
Weight:  200 lbs
Our Price:
$690.00


Out of Stock
  • Output: 7.5 HP
  • RPM: 1800
  • Voltage: 230/460V @ 60Hz)
  • Full Load Amps: 19.2/9.6 A
  • Enclosure: XPFC (Explosion Proof Fan Cooled)
  • Frame: 213T
  • Mounting: Rigid base
  • Service Factor: 1.0
  • Power Factor: 79.2
  • NEMA Design: B
  • Efficiency: 91.7 (NEMA PREMIUM)
  • Bearings: 6307 / 6208

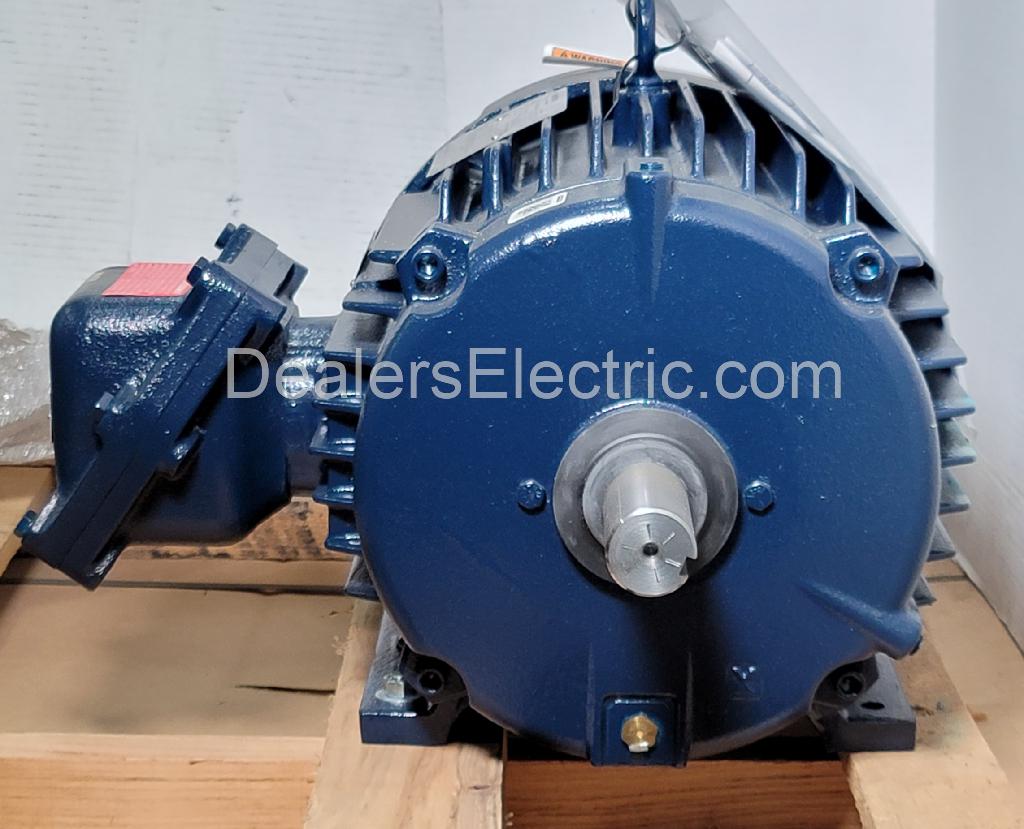

  • Shaft dimensions (dia x len): 1-3/8" x 3-3/8"
  • Made in U.S.A.
  • New Surplus with 90 day Dealers Industrial warranty
  • Hazardous Duty: Class II / Group CD FGInverter duty: 10:1 VT / 2:1 CT @ 1.0 SF
  • Leads: 9Marine Duty per IEEE45
  • With overheat protection device
