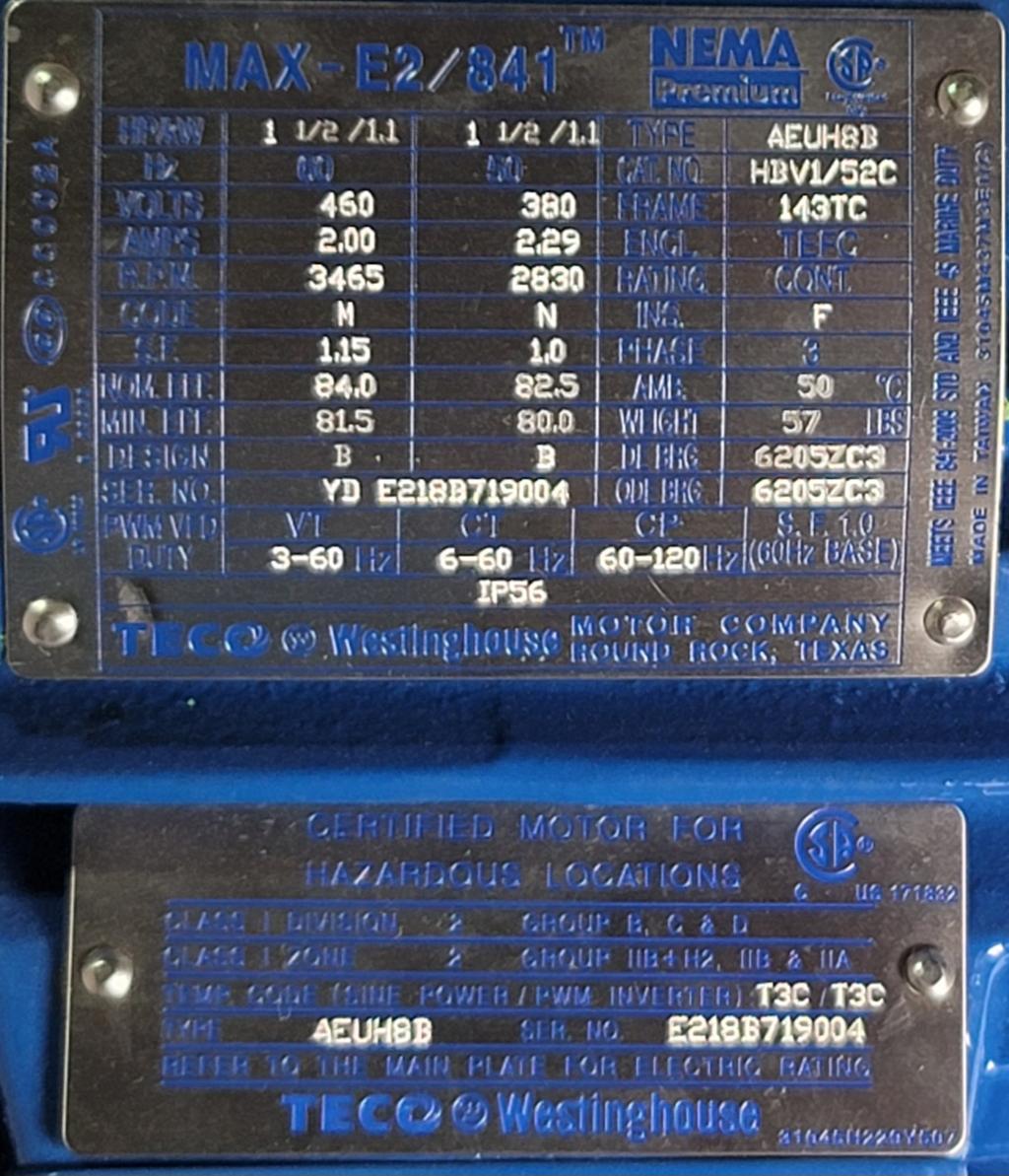

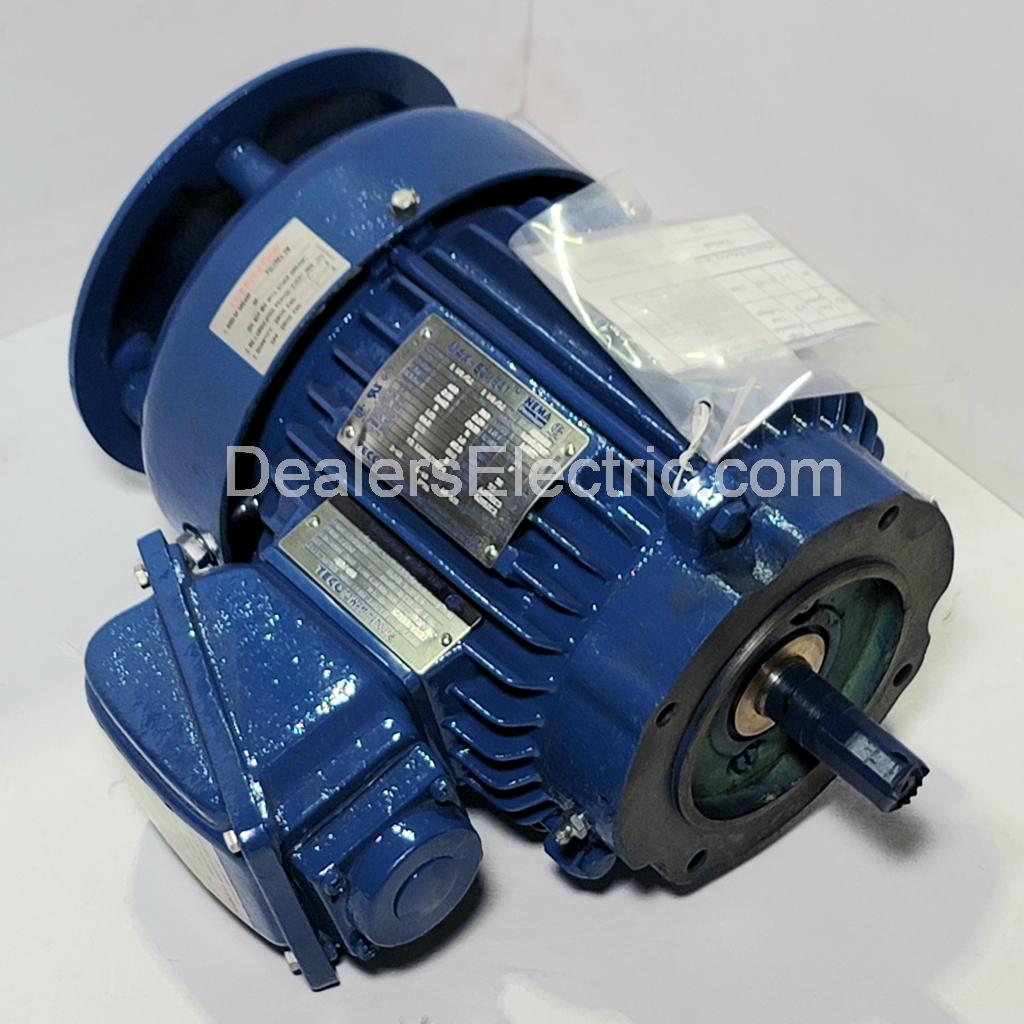

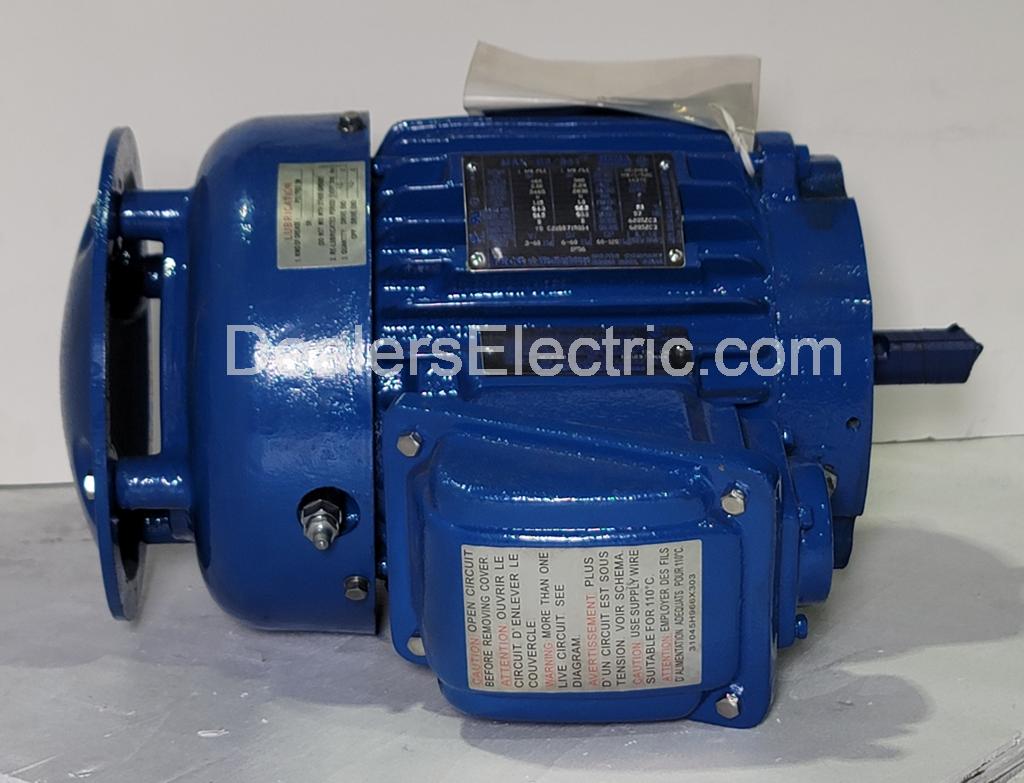

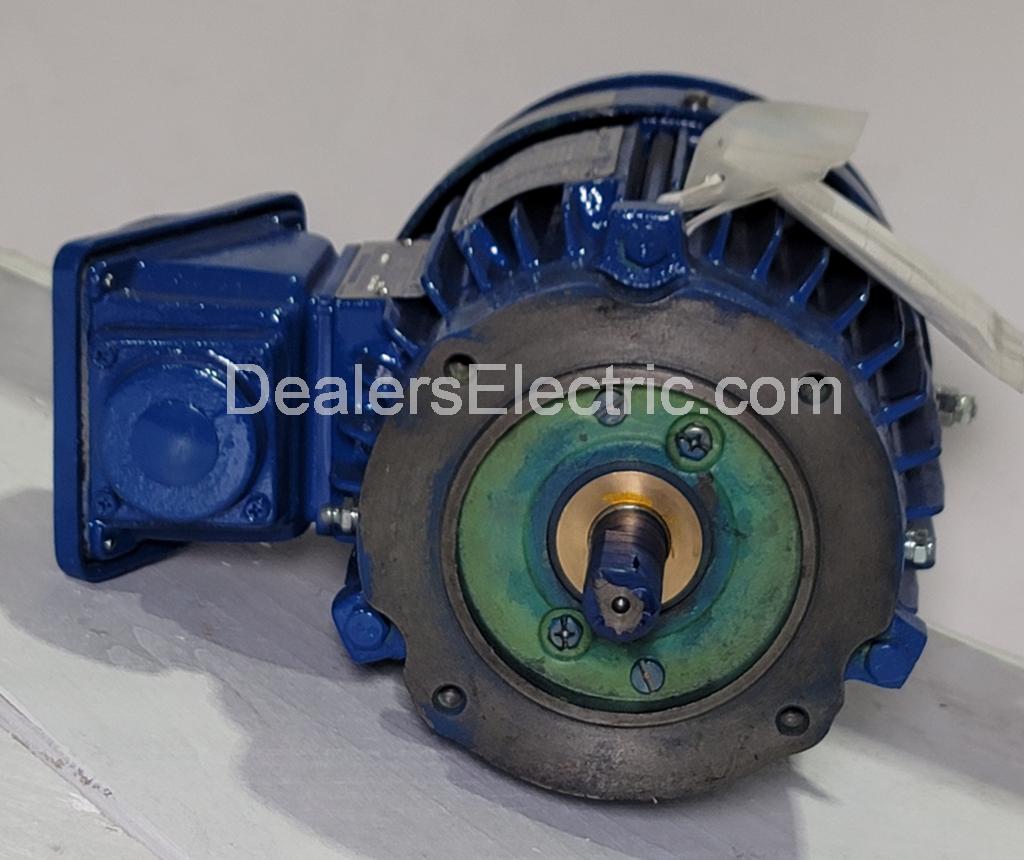

1.5 HP, 3600 RPM, 460 Volts, 3 PH, TEFC, 143TC, IEEE 841, FOOTLESS, Teco, HBV1/52C

MAX-E2/841 SEVERE DUTY / INVERTER DUTY

AEHH8BDC, FOOTLESS, NEMA PREMIUM IEEE841 [HBV*C]

APPLICATIONS:


• Fans and Blowers

• Pumps

• Crushers

• Compressors

• Mixers

• Conveyors

• Severe Duty/Petro Chemical

• Pulp and Paper Application

• Marine Duty


FEATURES:


• Model #: AEUH8B021R50YD10C

• Output: 1.5 HP

• RPM: 3600

• Voltage: 460V @ 60Hz)

• Full Load Amps: 2 A

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Frame: 143TC

• Mounting: C-face (NO base)

• Service Factor: 1.15(Continuous);(1.0@50Hz)

• Power Factor: 83.5

• NEMA Design: B

• Efficiency: 84.0 (NEMA PREMIUM)

• Bearings: High Quality Ball

• Shaft dimensions (dia x len): 7/8" x 2-1/4"

• New Surplus with 90 day Dealers Industrial warranty

• Ingress Protection: IP56

• Meets or Exceeds IEEE 841 Standards

• Meets IEEE 45 Marine Duty and ABS Design Assessment

• Insulation: Class F

• Temperature Rise: Class B

• NEMA Design B Torques as a Minimum; Various Ratings also Meet Design C

• Construction: Cast Iron Frame

• End Brackets & Fan Cover and Main Conduit Box

• Grounding Terminal: Inside Main Conduit Box with additional Foot Grounding Provision

• Conduit Box: Oversized and Rotatable in 90 Degree Increments - F1 Mounted

• Ambient Temperature: Designed for 50°C

• Elevation: Designed for 3300 ft.

• Rotation: Bi-Directional

• Shaft: 1045 Carbon Steel

• Rotor Construction: Aluminum Die Cast Squirrel Cage

• Paint System: 2 Part Epoxy

• Paint Color: Blue - Munsell 5PB 3/8

• Automatic Grease Discharge Fittings

• VBXX INPRO™ Seals Installed on Both Ends

• Stainless Steel Nameplate and Hardware

• Stainless Steel Automatic Breather Drain

• Suitable for Inverter Duty (PWM - Pulse Width Modulation) per NEMA MG-1 Part 30(4 & 5)

• Inverter Duty Speed Range: 20:1 Variable Torque / 10:1 Constant Torque

• Motor service factor is 1.0 when operated on a VFD.

• Motors are U.L. Recognized CSA Approved

• 3 Leads Only

• Dual Drilled Feet Available on Most Ratings - Longer Frames (i.e. 145T Drilled also for 143T)

• Vibration Not to Exceed 0.08 Inches Per Second

• Noise Level Not to Exceed 85 dB(A) at 1 Meter Unloaded

• CSA Certified for Class I Div. 2 Groups B C D - Temp Code T3 Maximum

• Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by the VFD as stated per NEMA MG-1.
