182TTFW16082--Marathon-Dealers Industrial
View Larger
0 Star Rating
0.0
 (Be the first to Write a Review)

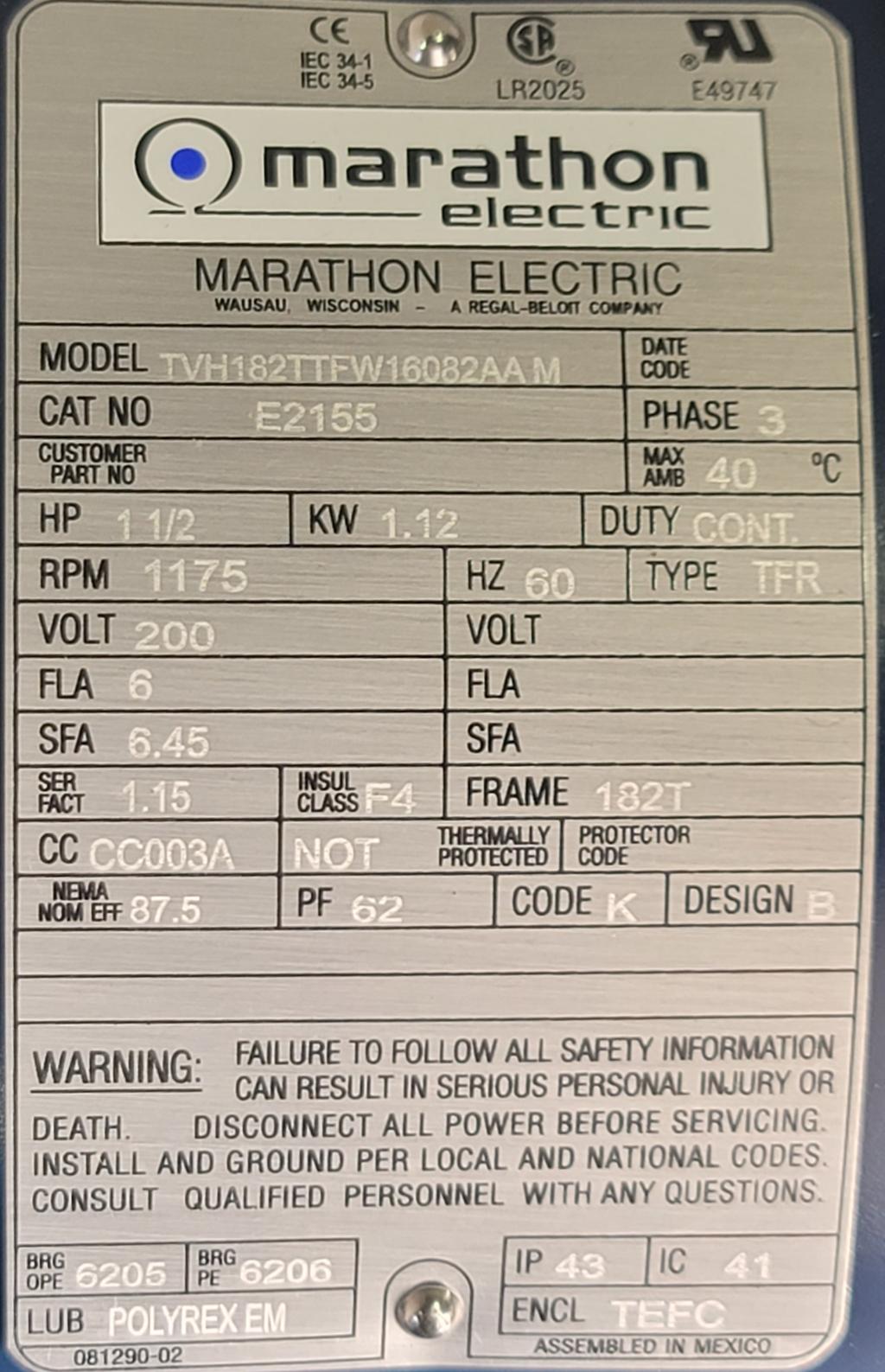

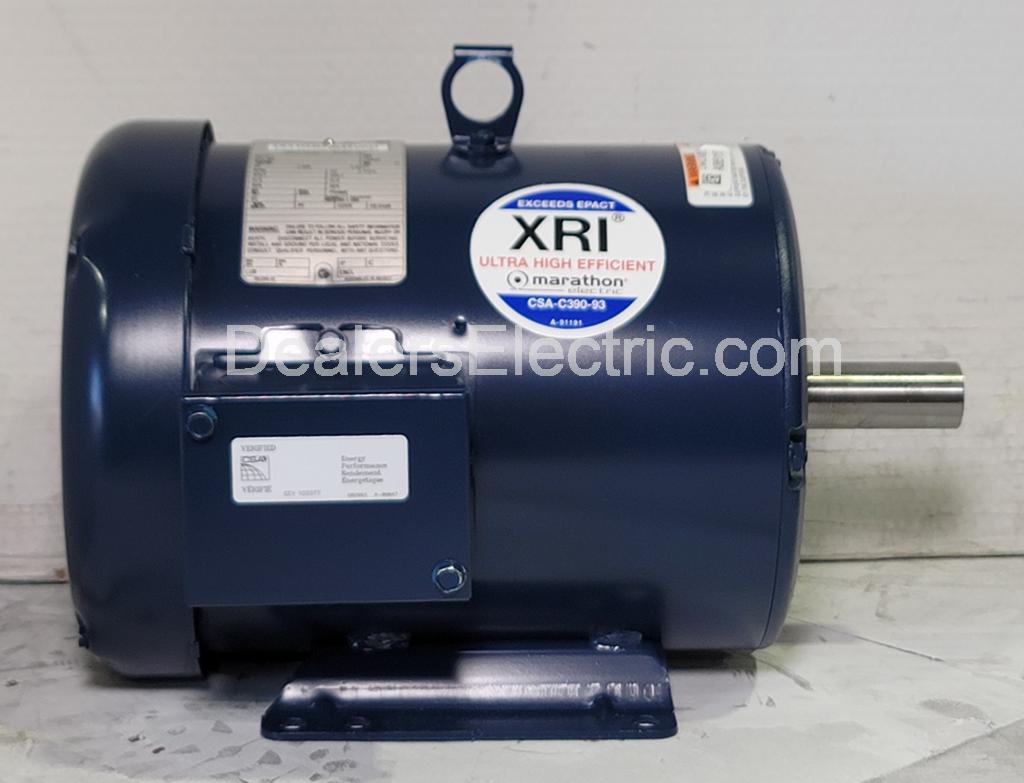

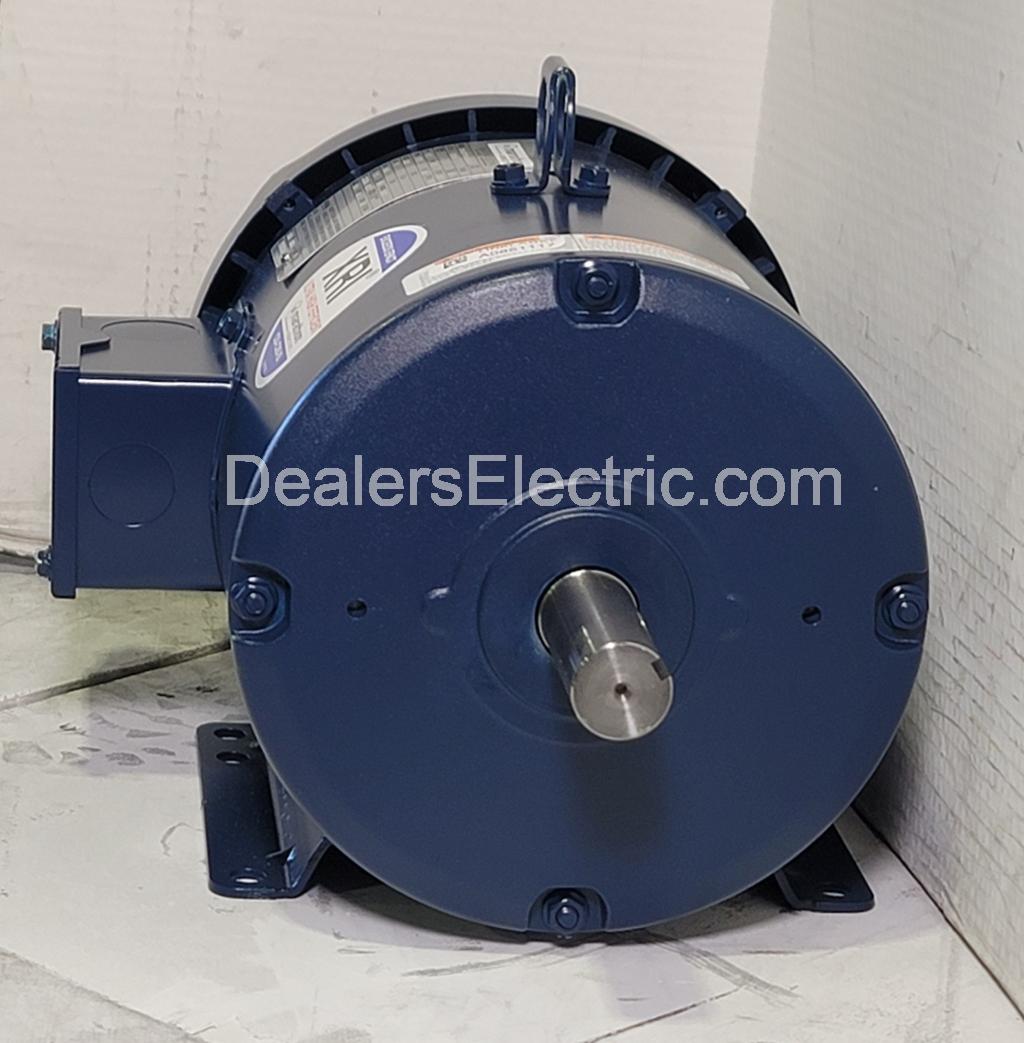

1.5 HP, 1200 RPM, 200 Volts, 3 PH, TEFC, 182T, MARATHON, 182TTFW16082

Model #: 182TTFW16082-
182TTFW16082-

Stock:  2
HP : 1.5
RPM : 1200
Enclosure : TEFC
Frame : 182T
Frame Number : 182
Frame Remarks :
Frame Suffix : T
Volts : 200
Phase : 3
Manufacturer : Marathon Electric
Item Condition : New Surplus
Category : Electric Motor
Weight:  89 lbs
Our Price:
$266.00
Qty:


  • Output: 1.5 HP
  • RPM: 1200
  • Voltage: 200V @ 60Hz)
  • Enclosure: TEFC (Totally Enclosed Fan Cooled)
  • Frame: 182T
  • Mounting:
  • Shaft dimensions (dia x len): 1-1/8" x 2-3/4"
  • New Surplus with 90 day Dealers Industrial warranty
  • NEMA Premium® XRI® Efficiency
    Three Phase

  • Totally Enclosed

    Rigid Base

    • APPLICATIONS:
      • General purpose use on compressors
      • pumps
      • conveyors
      • blowers
      • and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.
    • FEATURES:
      • J Meets or exceeds NEMA Premium® efficiencies
      • except where noted NEMA Premium® models are in compliance with EISA2007
      • Suitable for use on a VFD. Variable Torque and Constant Torque (as noted)
      • 1.15 Service Factor on sinewave
      • 1.0 Service Factor on IGBT power
      • F1 conduit box on Rigid Base
      • F3 on C-Face Footed (Rigid Base) motors
      • Bearing Current Protection (BCP)
      • as noted
      • Shaft slinger
      • Class F insulation
      • 1.15 Service Factor
      • Ball bearings (except as noted)
      • C-Face Footed models are rated 60/50 Hz
      • same HP
      • Motors accept C-face kits
      • as noted
      • UL Recognized
      • CSA Certified and CE Mark
      • Three year warranty
      • Rigid Base
      • Suitable for use on VFD per manufacturer's guidelines.
      • Factory New
      • Manufacturer Three Year Warranty
      • Catalog #: E2155
      • HP : 1.50
      • Voltage : 200
      • kW : 1.12
      • FL Amps : 6
      • RPM : 1200
      • FL Eff : 87.5 %
      • SF : 1.15
      • Phase : 3
      • Insulation Class : F
      • Frame : 182T
      • Duty : CONTINUOUS
      • Enclosure : TEFC
      • Ambient : 40
      • Mounting : Rigid
      • NEMA Design : B
      • Orientation : HORIZONTAL
      • Starting Type : LINE OR INVERTER
      • Assembly : F1 (F2 Modification Available)
      • KVA Code : K
      • Drive End Bearing : BALL
      • IP Code : 43
      • Opposite End Bearing : BALL
      • Drive End Bearing Size : 6206
      • Opposite End Bearing Size : 6205
      • Weight : N/A lbs
      • Inverter Speed Range : CONSTANT 10:1
      • CE : Y
      • CSA : Y
      • UL : Recognized Construction
