What is a Variable Frequency Drive?
A variable frequency drive is an electronic device that allows you to start, stop, and control the speed of a three phase motor. It is also a motor starter as it is equipped with overload protection. Read more »
What is the difference between a 'new surplus' motor and a 'factory new' motor?
Our New Surplus electric motors and drives are new and unused overstock or discontinued items offered at lower prices and come with our 90-day warranty.

Factory New products are competitively priced and come with a manufacturers warranty.
Variable frequency drives (VFDs or inverters) now play an important part in major industry.
Within the last 10 years they have been perfected to control and vary the speed of 3 phase electric motors. They serve many purposes, besides speed control. Homeowners and hobbyist alike, who have lathes or milling machines with a 3 phase motor, usually don't have 3 phase power to operate. These VFDs (instead of using a rotary phase converter) can now be used to convert single phase power to 3 phase power. Read more »


1 HP 1800 RPM 230 Volts Input Package-Dealers Industrial Equipment-Leeson Motor/Teco Drive
View Larger
0 Star Rating
0.0
 (Be the first to Write a Review)




1 HP, 1800 RPM, Stainless Leeson Motor with 1 HP, 230 Volts, NEMA 4, VFD


5% Off All Motor & Drive Packages - Online Only
Model #: 1 HP 1800 RPM 230 Volts Input Stainless Package
230V Single Phase Input-230V Three Phase Output

Stock:  0
Manufacturer : Teco-Westinghouse
Model : E510-201-H1FN4S-U
HP : 1
Input Voltage : 230
Input Phase : 1
Output Voltage : 230
Output Phase : 3
Enclosure : NEMA4
Motor Manufacturer : Leeson
Motor Model : 122029.00
Motor HP : 1
Motor RPM : 1800
Motor Frame : 143TC
Motor Frame Remarks : Footed-Washdown-Stainless Steel-Shaft Grounding Ring
Motor Enclosure : TENV
Item Condition : New Surplus
Weight:  52 lbs
Our Price:
$673.20

Out of Stock

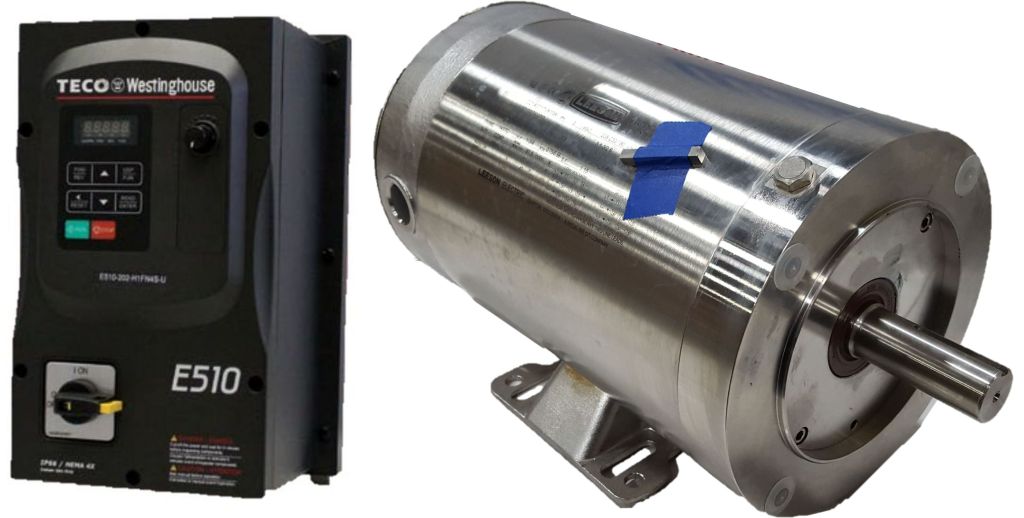

This variable frequency drive & three phase motor package consists of the following:

Teco-Westinghouse Variable Frequency Drive (VFD)

  • Model #: E510-201-H1FN4S-U
  • Enclosure: NEMA 4/4x/12 water and dust tight
  • Input Voltage: 230 Volt 1 Phase
  • Output Voltage: 230 Volt 3 Phase
  • Constant Torque Horsepower: 1
  • Constant Torque Amps: 4.3
  • Variable Torque Horsepower: -
  • Variable Torque Amps: -
  • Additional Features:
  • Height: 9.79"
  • Width: 5.94"
  • Depth: 7.87"
  • Certification: UL, cUL, and CE Approved
  • Warranty: Factory New with Manufactures Warranty

Leeson Washguard Stainless Steel Motor

  • Washdown
  • Stainless Steel
  • Leeson Catalog# 122029.00
  • Leeson Model# CZ6T17WK28A
  • Horsepower: 1 HP
  • RPM: 1800
  • Stainless Steel Construction
  • with Shaft Grounding Ring
  • TENV
  • NEMA 143TC Frame
  • Shaft Diameter: 7/8"
  • Shaft Length: 2.25"
